Mariborski železniški most (1846-1866-2020)

Nastanek mesta Maribor je tesno povezan s prehodom reke Drave. Tako se večina starejše zgodovine mesta vrti okoli reke in mostov čez njo. Vpliv prihoda železnice na razvoj mesta je nedvoumen, saj je bližina železniške postaje postala privlačnejša za gospodarske obrate kot bližina dravskega pristana, kajti promet se je v drugi polovici 19. stoletja vse bolj usmerjal na železnico.

V drugi polovici 19. stoletja, po izgradnji železniške proge skozi Maribor, je mesto pričelo naglo rasti. Tako je leta 1851 imelo le 4.168 prebivalcev, leta 1869 že 16.006 in leta 1900 31.337 prebivalcev. Maribor je postal pomembno prometno križišče tudi za železniški promet proti Jadranskemu morju (Trst) in preko Pragerskega proti Budimpešti. Leta 1863 se je z izgradnjo koroške železnice Maribor povezal s Celovcem.

Pojav železnice je omogočil reševanje tehnoloških in gradbenih problemov: vrtanje predorov, gradnjo nasipov, opornih zidov, mostov. Tudi Maribor je dobil moderni železniški most in če danes pogledamo iz mestne strani proti Malečniku, bomo mogoče videli vlak, ki pelje proti severu ali jugu.

Lesen železniški most

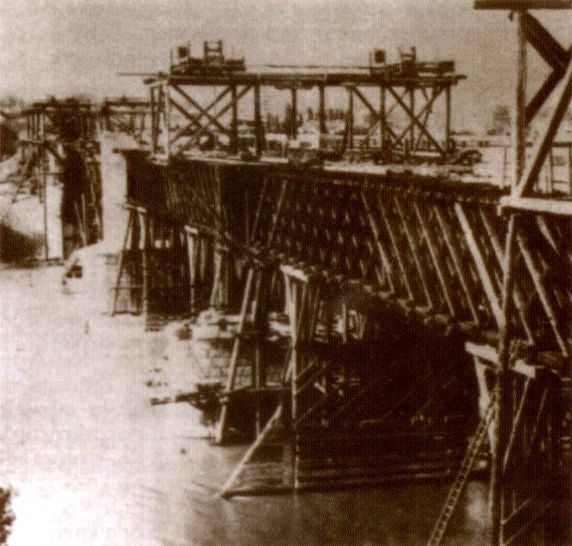

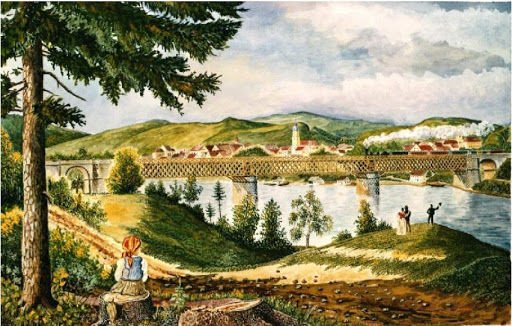

Prvotno lesen, premostitveni objekt na reki Dravi, zgrajen med  letoma 1844 in 1846, na progi Južne železnice med Dunajem in Trstom, je bil predalčne konstrukcije tipa Howe zasnovan po načrtih inženirja Carla Ghege.

Na mestu, kjer je Drava široka ca. 190 m, je zgradil tridelni most iz macesnovega lesa (20.111 m3). Odprtine med 4,70 m debelima zidanima opornikoma, postavljenima v strugo reke, so merile po 57 m. Predalčni nosilci so bili visoki 5,70 m. Tiri so bili položeni na vrhu nosilcev, skoraj 32 m nad gladino. Ker je bila proga dvotirna, je vsak tir dobil samostojno leseno konstrukcijo, ki sta bili med seboj povezani na obrežnih opornikih in na opornikih v strugi.

Prva lokomotiva je čez novo zgrajeni leseni most zapeljala 27.4.1846 z Ghego v kabini. Ohranilo se je tudi ime parnega stroja: lokomotiva Ocean je prispela iz Celja. Iz smeri Gradca pa beležimo prvo prečkanje mostu šele 18.5.1846. Ta vlak je na krovu že imel prominentne goste in sicer predsednika dvorne komore na Dunaju barona Karla von Kubeka in ter deželnega guvernerja grofa Pickenburga.

Carl Ghega

Carl Ghega se je rodil kot beneški meščan 10.1.1802. Severna Italija je bila prava dežela za otroka, ki je kazal nadarjenost za tehniko. Že s 17. leti je na univerzi v Padovi zagovarjal doktorat iz matematike in to le leto po pridobljeni inženirski diplomi. Namenjena mu je bila bleščeča kariera v Avstriji, njegovi domovini, kjer mu izzivov zares ni manjkalo.

Mladi inženir Ghega v strogi birokratski hierarhiji napreduje s hitrostjo in močjo strojev, ki se jim klanja. Najprej gradi ceste po zahtevnih terenih Tirolske, takoj ko se pojavijo prve železnice, pa najdemo Ghego na vseh težjih deloviščih. Železnica je za takratne inženirje nekaj podobnega kot so 200 let kasneje za njihove naslednike vesoljski poleti. Povsem nova tehnologija ga vznemirja in vabi.

Ghega je bil sicer eden izmed pionirjev, a pravi pionirji so doma na Otoku ali preko velike Luže. Leta 1836 ga dunajski bankirji dinastije Rothschield pošljejo na študijsko potovanje po železniško razviti zahodni Evropi, med katero tudi sreča takrat slavnega Stephensona.

Leta 1842 ga pritegnejo k načrtovanju Južne železnice in takoj zaprosi za novo študijsko pot. Tokrat preko Atlantika. Tam je videl zelo dobro leseno konstrukcijo tipa Hawe, ki je neke vrste leseni prednapeti nosilec. In Ghega je to s pridom uporabil na številnih mostovih, med drugim tudi na mariborskem. Tako je opravil z takrat najtežavnejšim odsekom Južne železniške proge med Šentiljem in Celjem.

Ghega, ki je ob otvoritvi proge do Ljubljane leta 1849 prejel orden Železne krone III in je leta 1852 postal predstojnik Centralne direkcije za gradnjo državnih železnic, je z dograditvijo proge do Trsta leta 1857 prispel na konec svoje poti. Država, ki je prav zaradi gradnje železnic zašla v finančno stisko, jih je bila prisiljena privatizirati. Z Južno državno železnico se je to zgodilo samo leto dni po dokončanju in še leto pozneje je bil Ghega prisiljen predlagati razpustitev direkcije, ki ji je načeloval. Izčrpan od strahovitih naporov je leta 1860 osamljen na Dunaju umrl.

Avstrija pa ni pozabila svojega največjega graditelja železnic in ga je razen z dunajskim trgom in ulico z njegovim imenom leta 1967 počastila še z bankovcem za 20 šilingov, na katerem je njegov portret in v ozadju najimenitnejši viadukti na Semmeringu. Na postaji Semmering pa mu je dunajsko društvo inženirjev in arhitektov, nekoč njegov najhujši zoprnik, leta 1869 skesano postavilo spomenik in oblikovalo sklad za štipendije za nadarjene študente tehnike ter »velike potovalne štipendije« za izjemne posameznike. Leta 1892 jo je dobil Maks Fabiani in s tem denarjem do leta 1894 študijsko popotoval po Evropi.

Kovinski most

V dvajsetih letih je dvotiren most postal dotrajan in ni zmogel zadostiti potrebam svojega časa, zato se je uprava Južne železnice odločila zgraditi novega. Leseno konstrukcijo so zamenjali za elegantno in širšo triločno kovinsko konstrukcijo na kamnitih podpornikih. Jekleni dravski most je bil zgrajen na temeljih prvotnega, leta 1846 postavljenega lesenega dvotirnega železniškega mostu.

V redni promet so novi most predstavniki avstrijske države predali 16. februarja 1866, 20 let potem, ko je bila zgrajena in prometu predana štajerska železniška proga med Gradcem in Celjem, 3 leta potem ko je bila odprta koroška proga med Mariborom in Celovcem, 17 let potem ko sta bila po železnici povezana Maribor in Ljubljana in 9 let potem ko je bila dograjena celotna proga Južne državne železnice med Dunajem in Trstom.

Most je veljal za  največji in najlepši rečni  železniški most  v Habsburški monarhiji. Kronist ga je ob obremenilnem testu v življenje pospremil z naslednjimi besedami: »Veličasten most, dostojen spomenik preminulemu projektantu višjemu svetniku Eclu, ponos vseh pri gradnji udeleženih inženirjev, prelepi okras našega mesta, je sijajno prestal tudi ta preiskus!« in je bil 16. feb. predan prometu.

Med vojno

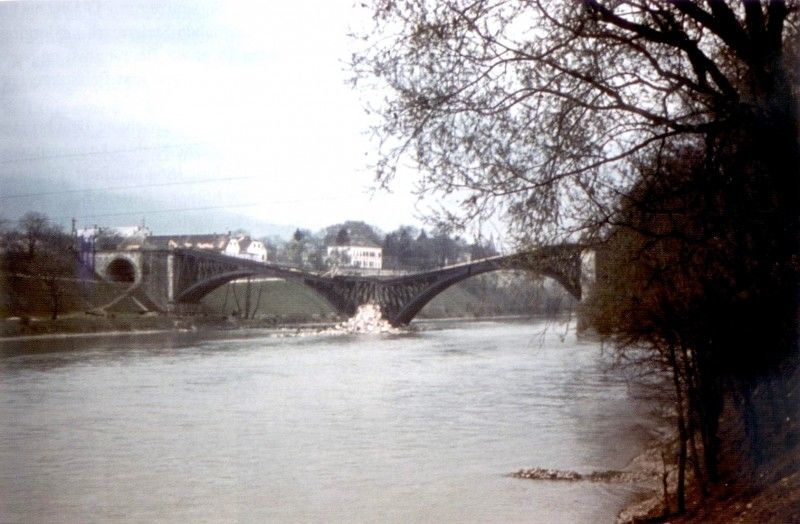

Med drugo svetovno vojno je doživljal dramatične trenutke od miniranja, nagle vzpostavitve prometa s strani okupatorja do zavezniškega bombardiranja. 7. aprila 1941, na začetku II. svetovne vojne in nemške okupacije Maribora se je most, potem ko ga je med umikom pred Nemci minirala takratna Jugoslovanska vojska, zrušil v Dravo.

Nemci so ga zasilno obnovili in usposobili za nadaljnji prevoz potniških in tovornih vlakov, zato je bil pozneje večkrat tarča zavezniških letalskih bombnih napadov. Nazadnje je bil bombardiran 12. aprila 1945, med zadnjim zračnim napadom na Maribor. Med napadi je bil vsakič poškodovan, nikoli pa porušen.

Po vojni je bil, med letoma 1948 in 1950, obnovljen v nespremenjeni obliki. Z nadaljnjimi popravili in sanacijami  je konstrukcija mostu kot del tehniške dediščine, bila deležna posebnih skrbi in vzdrževanja.

Mere mostu

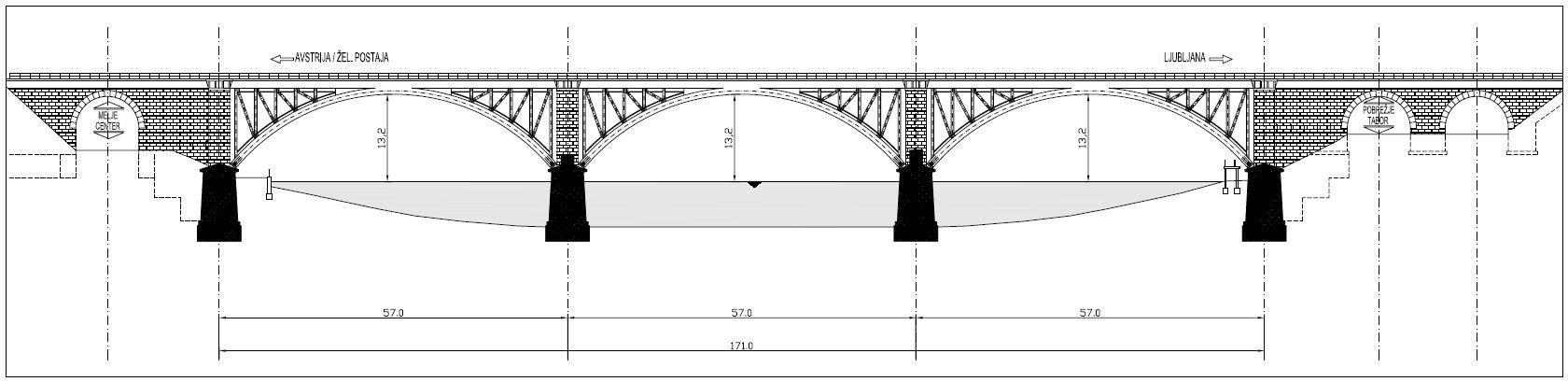

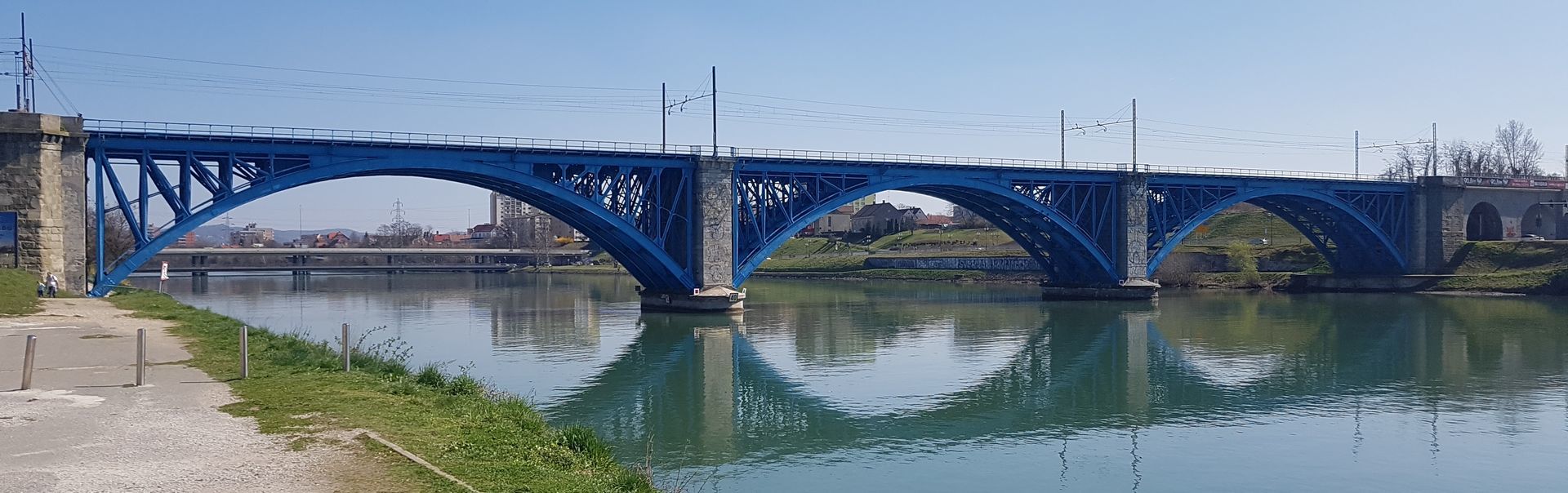

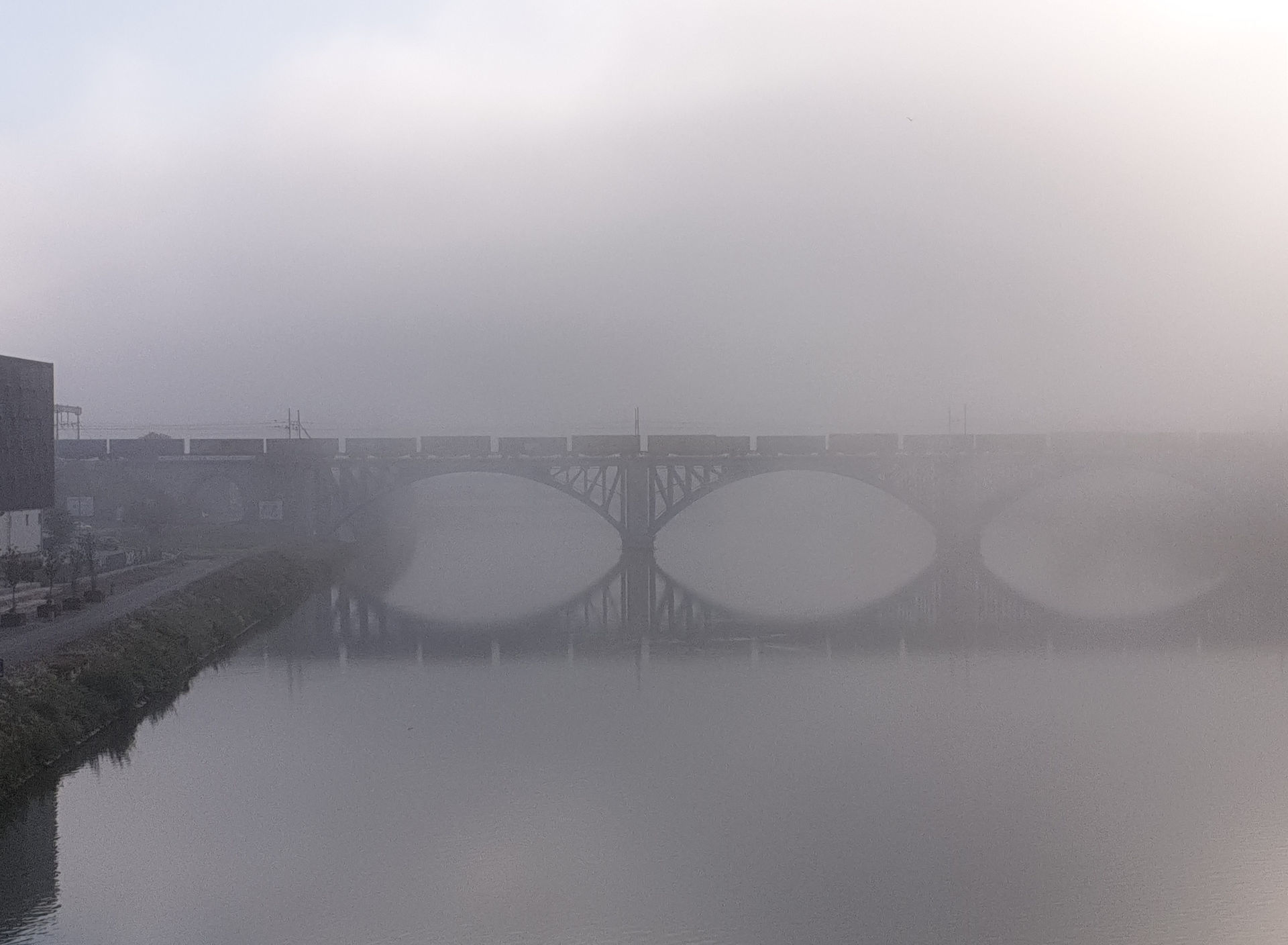

Današnji jekleni Železniški most ima tri tire, gradili pa so ga med letoma 1864 in 1866. Tvorijo ga jeklena konstrukcija, sestavljena iz treh lokov z razponom, 56,58 m. Dva rečna, iz peščenjaka sezidana podporna kamnita stebra, ki slonita na več desetih, 5 metrov dolgih, v dno rečne struge zabitih pilotih. In dva obrežna kamnita stebra s podvozom. Skozi 9,5 m širok južni podvoz na severnem obrežju reke Drave je bila po izgradnji mostu speljana Loška cesta (danes Oreško nabrežje), skozi enako širok južni podvoz pa Podbreška, današnja Pobreška cesta. Dolžina mostu s podvozoma znaša 233,39 m, njegova širina med bočnima ograjama na vrhu pa je 12,60 m.

Vozišče na mostu sestavljajo trije, v smeri sever-jug položeni tiri, od katerih sta vzhodni in srednji del magistralne proge Maribor – Zidani most – Maribor, zahodni pa je namenjen vožnji vlakov na obdravski progi Maribor – Dravograd – Maribor. Tiri so povprečno 16 m nad spreminjajočo se gladino, dobrih 168 m široke reke Drave, katere nadmorska višina pod mostom znaša danes pribl. 254 m. Na mostu je prepovedano zavirati, hitrost vožnje je omejena na 40 km/h. Zaradi škodljivih vibracij, ki bi most lahko poškodovale, pa čezenj ne smeta peljati dva vlaka hkrati. Most je od današnjega kolodvora oddaljen 540 m, z njim ga povezuje nasip, ki je bil zgrajen severno od prvotnega železniškega mostu v času gradnje železniške proge skozi Maribor.

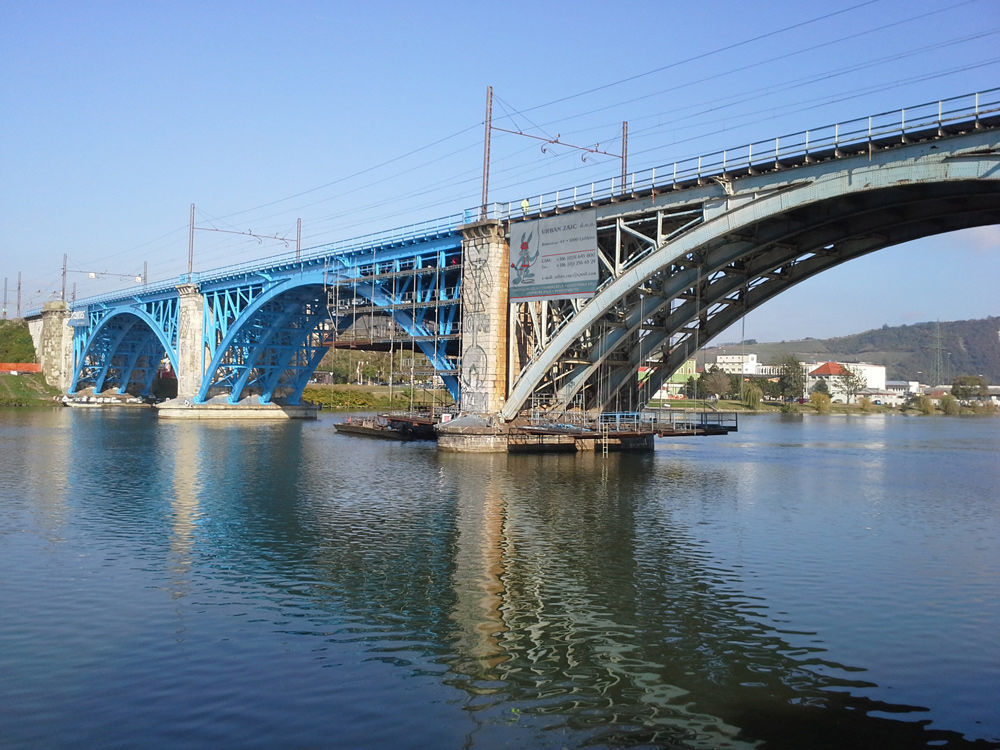

Most je bil med drugo svetovno vojno dvakrat močno poškodovan - tako oporniki kot tudi nosilna jeklena konstrukcija. Po vojni je bil most večkrat saniran in redno opazovan. Leta 1995 so naredili sanacijo glavne nosilne jeklene konstrukcije, leta 2007 pa še sanacijo levega rečnega opornika.

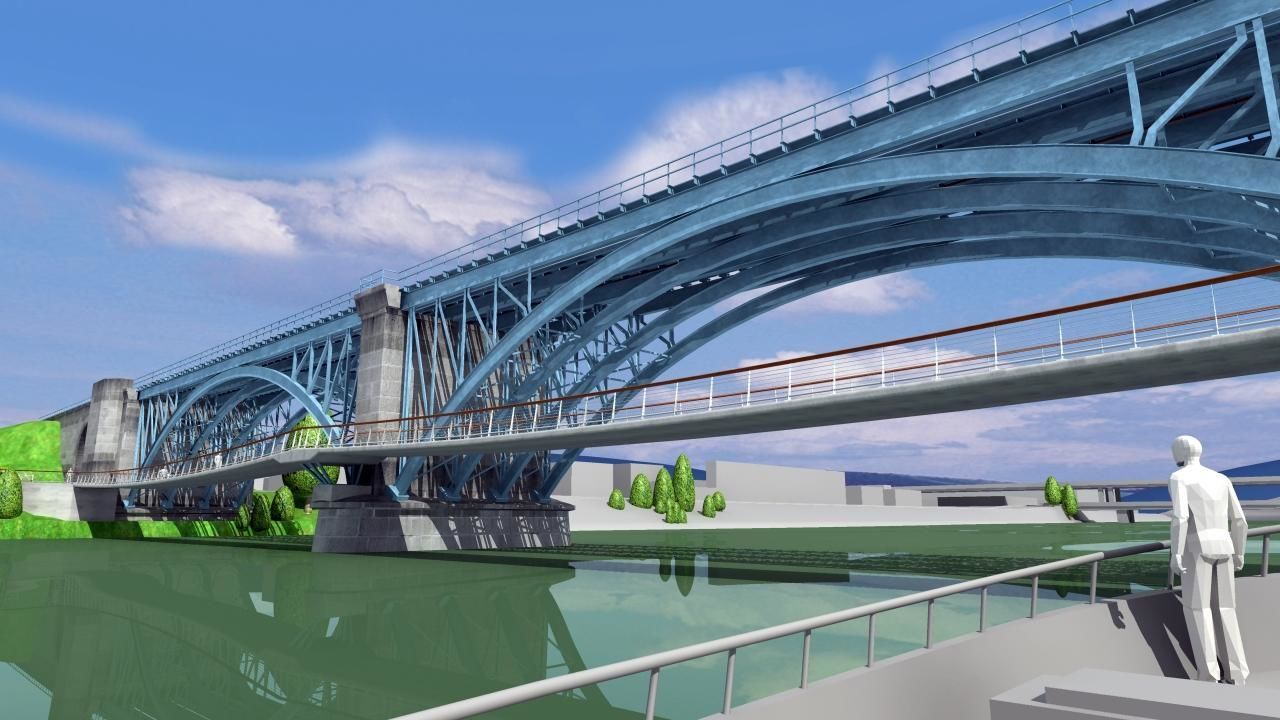

Most danes in jutri

Mariborski železniški most je največji in najstarejši ohranjeni železniški most v Sloveniji.  Od leta 1992 je zaščiten kot spomenik lokalnega pomena in vpisan v register nepremične kulturne dediščine RS.
