Folded Rocks EarthCache

Folded Rocks

Folds

Folds are wavelike deformation patterns in rock layers or other geological material that result from the application of stress over a period of time. This process causes the originally flat or layered rocks to bend and deform, creating folds that can take on various shapes and sizes. Folds are a common feature in many geological settings and are important in understanding the deformation history of rocks and the tectonic processes that have shaped the Earth's crust.

Geometry of Folds

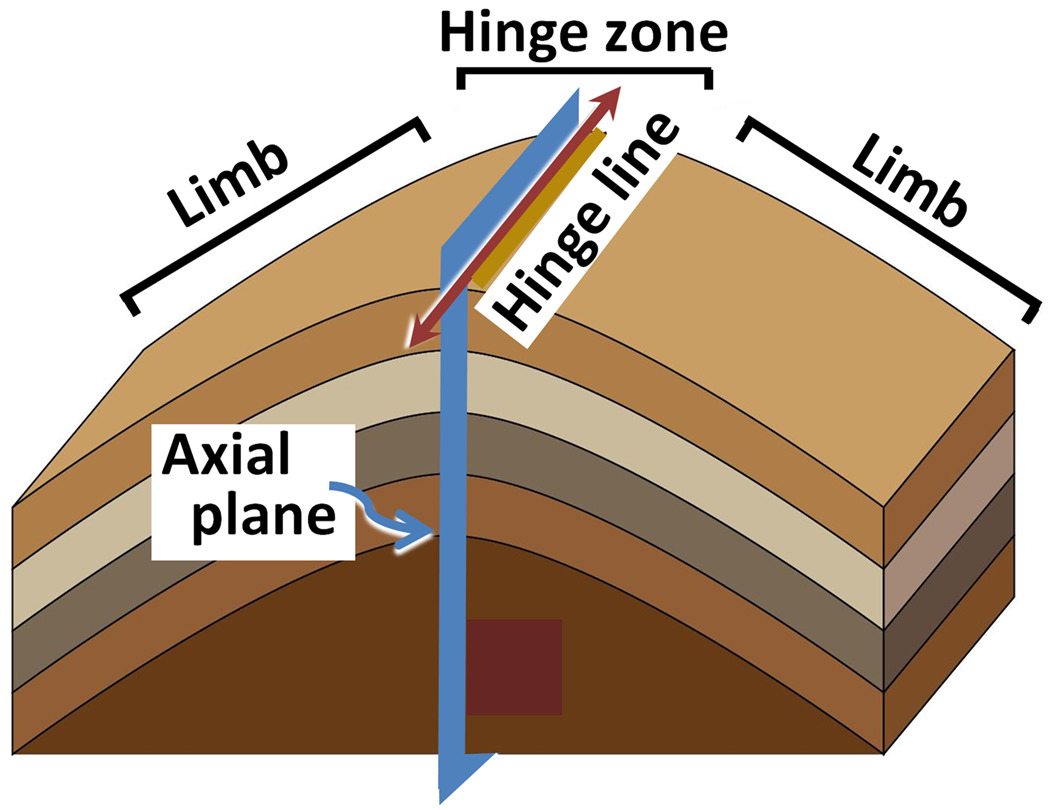

The geometry of folds is defined by several elements, including the fold axis, the axial plane, and the limbs. These elements can vary in orientation and shape depending on the type of fold.
The fold axis is a line drawn along the crest of the fold, which represents the maximum curvature of the fold. The orientation of the fold axis can vary from horizontal to vertical.
The axial plane is a hypothetical plane that divides the fold into two limbs. It is perpendicular to the fold axis and bisects the angle between the limbs. The orientation of the axial plane can vary from horizontal to vertical, too.
The limbs are the two sides of the fold that are separated by the axial plane. They can have different shapes and orientations depending on the type of fold.
The plunge of a fold is the angle between the fold axis and the horizontal plane. A fold can have different types of plunge, such as horizontal, vertical, or plunging at a specific angle.

The geometry of folds can provide important information about the type and intensity of deformation that rocks have undergone. For example, the orientation and shape of folds can indicate the direction and magnitude of tectonic forces that have acted on the rocks.

Classification of Folds

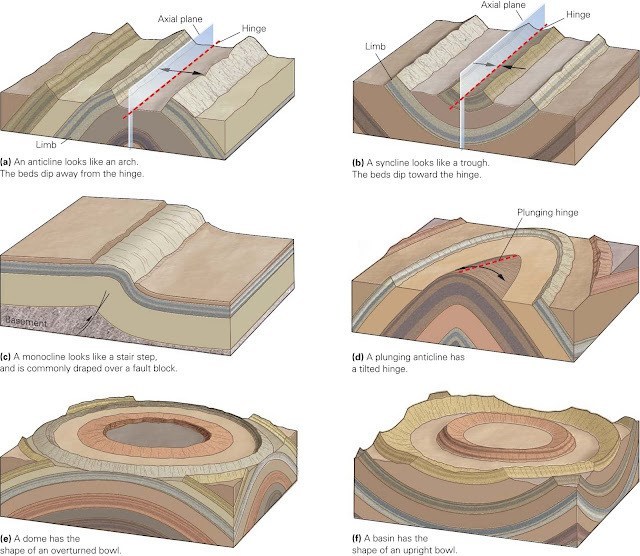

Folds can be classified based on several criteria, including the shape and geometry of the fold, the relative orientation of the axial plane and fold axis, and the nature of the fold hinges.

Symmetrical fold: A fold in which the two limbs are mirror images of each other
Asymmetrical fold: A fold in which the two limbs are not mirror images to each other.
Anticline: A fold in which the limbs dip away from the axis of the fold, and the oldest rocks are at the core of the fold.
Syncline: A fold in which the limbs dip towards the axis of the fold, and the youngest rocks are at the core of the fold.
Overturned fold: a fold in which one limb has been tilted beyond the vertical.
Horizontal fold: The axial plane is horizontal, and the fold axis is vertical.
Plunging fold: The axial plane is inclined, and the fold axis is inclined as well.
Tight fold: The hinge of the fold is sharp and the limbs are close together.
Open fold: The hinge of the fold is more gentle and the limbs are farther apart.
Isoclinal fold: The limbs are parallel and the hinge is tight.
Dome: A nonlinear fold, strata dip away from center in all directions, oldest strata are in center.
Basin: A nonlinear fold, strata dip toward center in all directions, youngest strata are in center.

The situation at the Earthcache's location

The rock outcrop with the folds to which this Earthcache leads is located on the island of Rhodes on the Archangelos - Stegna road. You can park in the immediate vicinity, there is also a nice vantage point here.

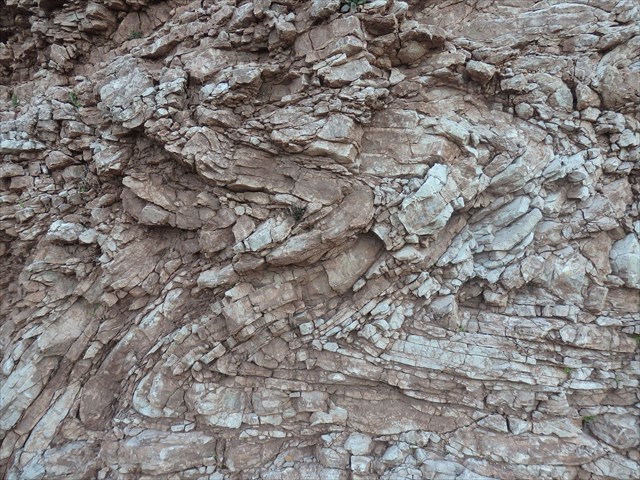

Extensive rock outcrops with numerous folds of alternate layers of limestone and chert can be observed here. The limestone and chert were originally deposited as flat layers on the floor of a deep sea basin. The folds were produced by Alpine deformation.
The Alpine orogeny is an orogenic phase in the Late Mesozoic and the current Cenozoic that has formed the mountain ranges of the Alpide belt. It is caused by the continents Africa, Arabia and India and the Cimmerian Plate colliding (from the south) with Eurasia (in the north). The process continues currently in some of the Alpide mountain ranges.
Because the site here shows an exceptional outcrop of folds that makes it unique, it was chosen for this Earthcache.

Your task to log the Earthcache:

Answer the following questions via message in English or German via my geocaching profile:

1.) Describe the situation at the location in your own words - what types of folds can you observe?
2.) How thick are the rock layers there and how many layers are forming a fold?
3.) How do you think these folds have been formed? Give me a short description in your own words!
4.) Optional: Post a photo with your log, showing you and/or your GPS near the location!


After you've sent me the message with your answers, feel free to log! If there's something wrong, I'll contact you via message!
