To log this earthcache, send me an email with the answer
to the following questions:
1) Classify the water from this spring according to its
temperature, pH, and dissolved minerals.
2) Indicate the three phases that give rise to mineral
water. From what rock do the minerals in the water come?
3) Can you see bubbles coming out through the glass? Is it
a slow or fast process?
4) Add a photo of yourself at the site, or another photo
in which an object can be seen, or your nickname on a
piece of paper.
If you believe you have
successfully completed this Earth Cache goals and has
already sent to me all the requirements as requested,
Please, feel free to log it as found. Later i will
verify the requirements sent and, if necessary, contact
you in order to make the necessary corrections to your
log. |
Medicinal
Waters
What is a medicinal
water source?
A medicinal spring is a natural source of groundwater that
contains minerals or other physicochemical characteristics
that may have beneficial effects on health. These properties
depend on multiple factors:
-The type of rocks that cross the water.
-The time that passes underground.
-The temperature it reaches.
-The disuel gases that drag.
Since ancient times, civilizations such as the Roman or
Greek have used these manantiales for therapeutic, religious
and social purposes. Today, its analysis allows us to
understand the interaction between geology, hydrogeology and
human health.
Classification of medicinal waters
Waters are classified according to three main criteria:
temperature, pH and mineral composition.
1. According to temperature
Type
|
Temperature
(°C) |
Cold
|
<
20 °C |
Hypothermals
|
20
– 35 °C |
Mesothermals
|
35
– 45 °C |
Hyperthermal
|
>
45 °C |
2. According to pH
| Type |
pH range |
| Acidic
|
<
6.5 |
| Neutral |
6.5 – 7.5 |
| Alkaline
|
>
7.5 |
3. Second dilute minerals
Type of
water
|
Main
minerals |
Associated
properties |
| Bicarbonates
|
HCO₃⁻
|
Digestive,
diuretic |
| Sulfated
|
SO₄²⁻
|
Hepatic,
mild laxatives |
| Chlorinated
|
Cl⁻ |
Rehydrating,
metabolic stimulation |
| Ferruginous
|
Fe²⁺ |
Antianemic |
| Carbogases
|
CO2
|
Stimulants
digestive |
| Sulfurous
|
H2S
|
Dermatological,
antirheumatic |
| Radioactive
(natural) |
Radon
(Rn)
|
Sedating,
relaxing (in safe doses) |
Geological
origin of medicinal waters
Medicinal waters are not simply filtered rainwater. Its
origin implies deep and slow geological processes that can
last years or even seconds. The typical process follows
these phases:
Infiltration: Meteoric water (rain or snow)
penetrates the subsoil through gaps, fissures or porous
materials.
Deep circulation: The water descends hundreds of
thousands of meters, being heated by the geothermal gradient
(3°C per approximately 100m) and dissolving minerals from
the rocks.
Ascension: Through falls, fractures or permeable
zones, water returns to the surface, loaded with minerals,
gases (such as CO? or H?S) and, sometimes, natural
radioisotopes such as radon.
Key geological factors:
Type of rock (lithology): Caliza rocks, for example, favor
the appearance of bicarbonated waters, while volcanic rocks
can give rise to sulfurous or ferruginous waters.
Tectonic fracture: The falls and fractures allow the
circulation and emergence of water at the surface.
Residence time: The longer the water spends in the
underground, the more mineralized it will be.
Internal heat: In volcanic or geothermally active areas,
water can reach temperatures above 50°C.
In short, each spring is the result of a unique geological
history, and its study allows us to read that history
through water
Granite
Dissolution Process
1) Formation of carbonic acid
Water + CO₂ from the soil → H₂CO₃ (carbonic acid)
2) Hydrolysis of granite minerals
The acid penetrates the granite and reacts with its minerals.
Dissolution of specific minerals:
Feldspars (K,
Na, Ca)
Reaction:
feldspar + H₂CO₃ + H₂O → clays + K⁺, Na⁺, Ca²⁺, Si(OH)₄, Al³⁺
Result: Formation of clays and release of ions into water.
Micas (biotite, muscovite)
Release: K⁺, Mg²⁺, Fe²⁺/Fe³⁺, Al³⁺ → also contribute to clays
and dissolved ions.
Quartz (SiO₂)
Very resistant → low dissolution, usually remains as a residue
Manantial de Cabreiroa
Localización
En Verín existe una
extensa depresión, surcada de Norte a Sur por la alargada falla
rumbo-deslizante de Laza, que corta un granito moscovítico. Esta
roca no aflora en esa zona, pues está cubierta por los sedimentos
de los abanicos aluviales y de la llanura de inundación del
ríoTámega. En esta comarca existieron cinco importantes
balnearios, pero actualmente quedan tres, cuyas aguas se usan sólo
para bebidas de mesa envasadas, por sus excelentes cualidades
digestivas. Estos son : Sousas, Fontenova y Cabreiroá.

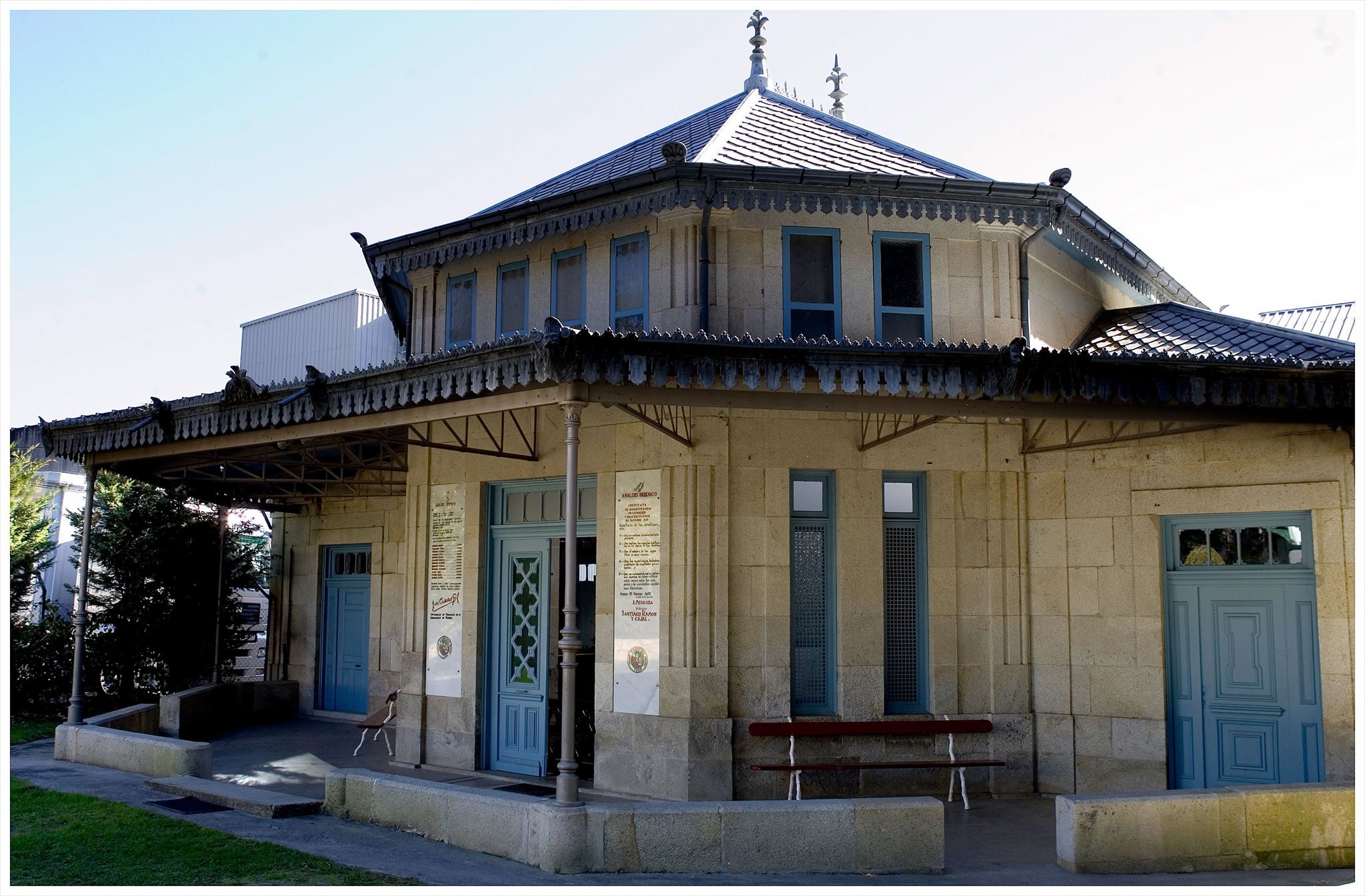

Este antiguo balneario, que está situado a 1,2 km, al Sur del
núcleo urbano de Verín, tiene un gran edificio de balneoterapia
construido en 1.906, hoy sin uso. Además hay un artístico quiosco
octogonal, donde se puede beber y observar, a través de dos
cilindros de cristal, como surge con gran cantidad de burbujas de
gas carbónico un agua bicarbonatada sódica fuertemente
mineralizada y a una temperatura de 17 ºC. La planta
embotelladora, situada enfrente del balneario, utiliza dos pozos :
uno da un agua de mineralización débil bicarbonatada
cálcica-sódica, y el otro, la bicarbonatada sódica fuertemente
mineralizada y con gas.
Caracteristicas del manantial
Se trata de una serie de manantiales, aprovechados para agua
mineral, situados en lo que se conoce como Cuenca de Verín drenada
por el río Támega. Dicha depresión se sitúa al Sur de la Provincia
de Ourense y se encuentra rodeada de importantes relieves que
superan ampliamente los 1000 m, destacando al Norte el Parque
Natural do Invernadeiro. Se sitúan en granitos de dos micas
sincinemáticos que se emplazan en los esquistos de los Grupos
Nogueira y Santabaia con recubrimientos de distinto espesor de
depósitos sedimentarios de origen tanto aluvial, como coluvial y
de llanura de inundación. Las aguas se caracterizan por su
temperatura fría (14-19º C), valores de pH ligeramente ácidos
(5,9-6,8). Es llamativo que las aguas emergen con su propio gas
natural, tratándose de unas aguas bicarbonatadas, sódicas,
litínicas y acídulas. LIG pendiente de descripción y delimitación
definitiva

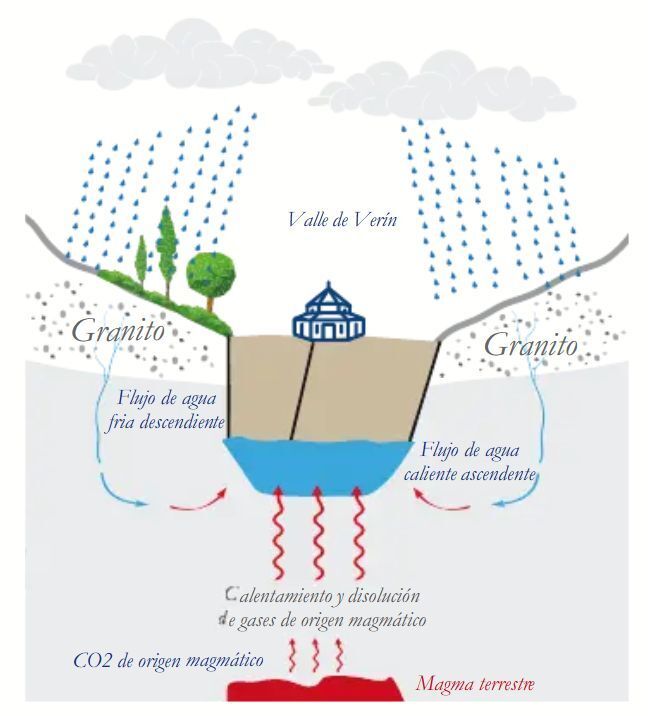

Ciclo de las Aguas de Cabreiroá
Cuando tocan el suelo, las gotas inician un proceso que dura más
de 200 años. Primero descienden por las grietas del macizo
granítico, filtrándose por sucesivas capas de granito y cuarcitas.
A 3.000 metros de profundidad, el agua alcanza los 100ºC de
temperatura y se mezcla con el gas carbónico que escapa del magma
terrestre por la falla de Regua Verín. Es entonces cuando Magma
adquiere sus finas burbujas de gas carbónico natural y enormes
presiones la empujan de nuevo hacia la superficie. Tras el segundo
proceso de filtrado que se produce al ascender, magma de Cabreiroá
se extrae a 150 metros de profundidad.
|
